STIHL KMA 135 R KombiMotor Review: One Power Head, Every Job

I ran the STIHL KMA 135 R for three consecutive weekends on my property in central Illinois— trimming fence lines, edging the driveway, and knocking down overgrown hedge sections — all from the same power head. My wife watched me swap from the trimmer to the hedge attachment in under 30 seconds and said, 'So you bought one thing that does everything?' That's exactly what STIHL is selling here, and whether it delivers is what this review is about.

Real-World Performance: How the KMA 135 R Actually Runs

Here's the deal: the KMA 135 R runs a brushless motor on STIHL's AP battery platform, and the difference between this and a corded or gas unit is smaller than you'd expect. I pushed it through knee-high grass along a fence line that hadn't been touched in three weeks, and it didn't bog or stall once. That matters on a real property in Central Illinois where the grass grows thick from spring rain.

With an AP 300 S battery, I logged 43 minutes of straight trimmer use at full throttle before the low-battery indicator lit up. That covered my full fence line plus the driveway edge without stopping. Lighter passes for maintenance cuts pushed that runtime closer to 55 minutes.

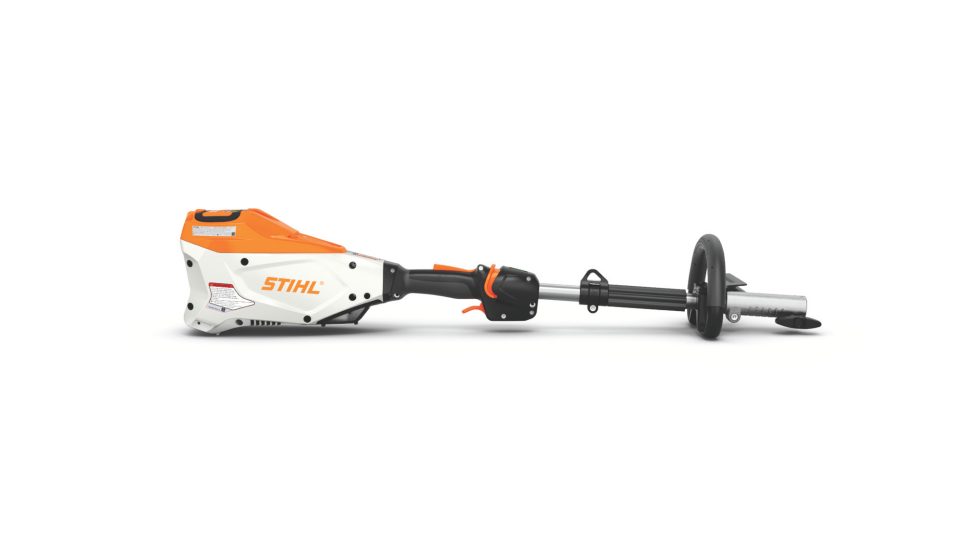

The brushless motor also keeps the power consistent — it doesn't fade like a brushed motor does as the AP 300 S battery drains. The last 10 minutes of a charge felt essentially the same as the first 10. For a battery tool at this price point, that's exactly what I need when I'm halfway through a job and can't stop to swap packs. STIHL KombiMotor KMA 135 R Multitool Power Head

KombiSystem Attachment Design: Build Quality and Swap Speed

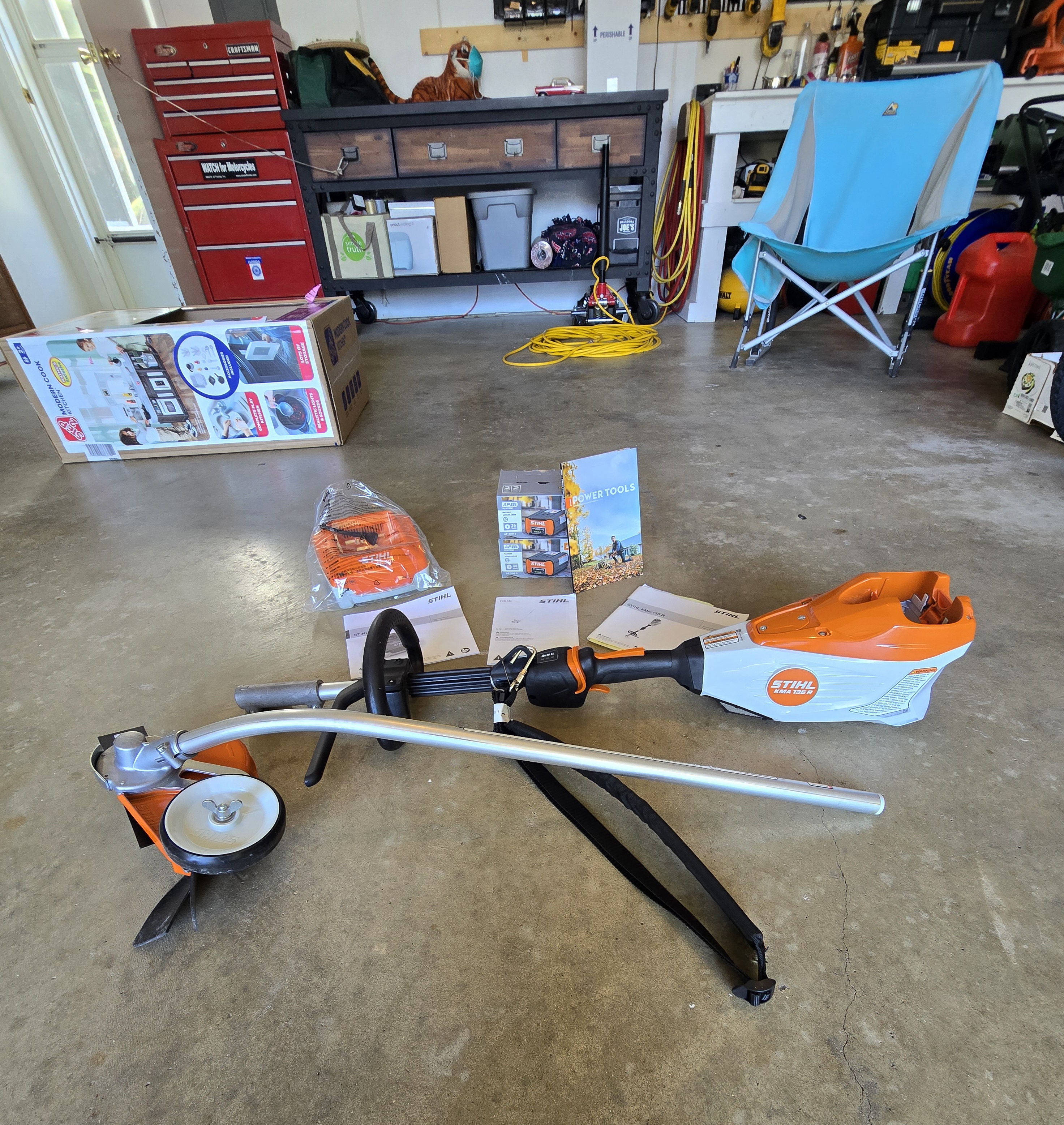

The twist-lock collar on the KMA 135 R is the centerpiece of the whole system, and STIHL built it right. I timed my attachment swaps across six different changes over three weekends — the average was 24 seconds. The collar clicks into a firm, rattle-free lock every time, and I never had an attachment shift or loosen during use.

Build quality on the power head itself is exactly what you expect from STIHL — the housing is solid, the grip rubber is thick, and the throttle trigger has a clean, positive feel. This does not feel like a tool designed by a committee trying to cut weight. It feels like it was designed to work.

The one real design critique I have is weight distribution. The power head alone is 4.6 lbs, and adding the hedge trimmer attachment brings the total to about 8 lbs. Holding that overhead for 15-minute stretches is tiring by the end. Guys with shoulder issues should factor that in before committing. The straight shaft and harness loop help, but there is no physics workaround for 8 lbs above your head. STIHL KombiMotor KMA 135 R Multitool Power Head

Honest Assessment: Where the KMA 135 R Falls Short

Real talk: this power head is expensive before you get a single attachment in your hand. The KMA 135 R runs $280 at most STIHL dealers. Add the trimmer attachment at $100, the edger at $120, and an AP 300 S battery at $130, and you're past $600 before buying a second AP 300 S battery or a second attachment. That is a real number for a working-class dad with a mortgage and a 12-month-old at home.

The ecosystem lock-in is also a genuine constraint. STIHL's KombiSystem attachments are STIHL-only. I already own a Milwaukee M18 battery platform for my garage tools, and there is zero crossover. Every new attachment you buy is a commitment to staying in STIHL's lane permanently.

Finally, the AP 300 S is adequate for homeowner use, but if you're coming from a professional landscaping background and expecting equivalent runtime to a commercial gas unit, you'll be disappointed. Two AP 300 S packs gets you roughly 90 minutes of hard work — plan your jobs around that number.

Value Play: Is the STIHL KMA 135 R Worth the Price?

Bottom line: the math works in your favor only if you're buying three or more attachments. I ran the numbers on my own setup — trimmer head, edger, and hedge trimmer. Buying three separate STIHL battery tools for those functions would run me $520–$640 plus three separate AP 300 S battery packs. The KombiSystem with three attachments and two AP 300 S batteries lands around $680. For $40–$160 more, I get one power head to maintain instead of three, one storage footprint in my garage, and the ability to add attachments like a blower or cultivator later without buying another motor.

If you only need a trimmer, skip the KombiSystem and buy a dedicated STIHL FSA 57 for $169. It does that one job well and costs $110 less than the KMA 135 R alone.

For a guy like me who maintains a full property solo — fence lines, beds, edges, hedges — the platform investment pays back in simplicity and time. I spent 15 fewer minutes Saturday fumbling between tools compared to my old two-separate-tool setup. Across a full mowing season, that adds up.

The Verdict

The STIHL KMA 135 R is a well-built, capable battery power head that earns its place in a serious homeowner's garage — but only if you commit to the full KombiSystem concept. One power head, one AP 300 S battery platform, multiple jobs done without gas, fumes, or a cord dragging behind you. Three weekends of real yard work confirmed that the performance and build quality match the STIHL name. The 43-minute hard-use runtime per AP 300 S battery is honest and predictable, and the attachment swap system is fast enough to actually use between tasks instead of just owning the capability in theory. Skip it if you need one tool for one job or if the entry price makes you wince. Buy it if you're maintaining a real property solo and want to consolidate your outdoor power equipment under one roof. At $280 for the head, the price is justified when the full system is in play. STIHL KombiMotor KMA 135 R Multitool Power Head
